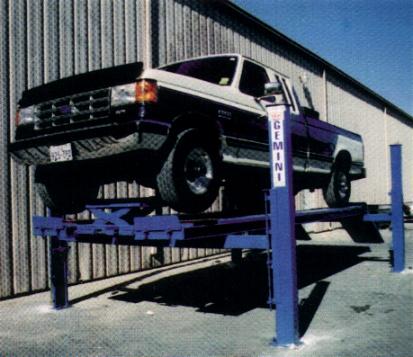

GR-5A 12,000lb Alignment Lift.
Please email me for any info you might need.
GR-5A 12,000lb Alignment Lift.
Capacity.........12,000 lbs
Overall Width ...11'-4"
Overall Post Length....15'-6"
Width Between Columns...10'-0"
Overall Length w/ramps...21'-10"
Width of Runway.....1'-10"
Length of Runway....17'-2"
Lifting Height......6'-0"
Power Unit....2HP.230v. 1 ph
Wheel Base-4 Wheel Alignment..86"min.142"max
|

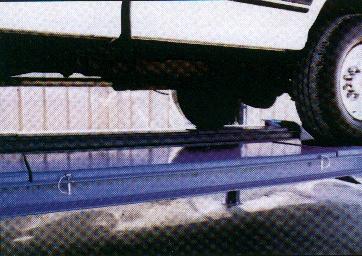

Standard Rear Slip Plates.
Standard rear slip plates lock down when not in use.
|
|
|
5,000 lb Capacity w/Insured Vehicle Stability Featuring Auto-Locking Device.
,,,
|
Air Jack.
|
|
|

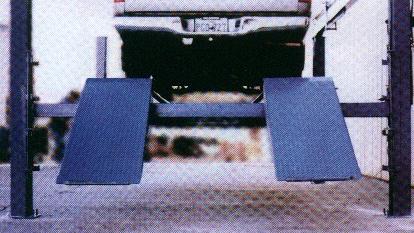

Extra Long Approach Ramps to Clear Low Front Ends.
|
Approach Ramps.
|
|
|
With the Optional Turntables in Front of Cross Rail Leaves Work Aera Completely Accessible.
|
Optional Turntables.
|
|
|
|
|
These are just a few of our Options for the GR-5A 12,000 lb Alignment Lift.
|
|
